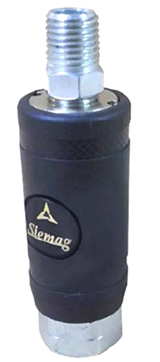

Push Button Safety QRC
Siemag introduces the all new Push Button Safety Quick Release Couplings. The 2 Stage release mechanism prevents hose whipping that causes injury that could result from accidental disconnection. It also prevents scratches or damage to the working surface due to the contoured body with round edges. Manufactured from shock-resistant composite material, together with surface treated metallic components these QRCs ensure long life and dependability. On pressing the button once the air in the releases instantaneously and on pressing the button the second time the plug gets released from the socket.
Features
- 2 Stage Release Action. Press button once: instantaneous pressure relief Press button twice: Instant disconnection.
- Impact & Scratch Resistant
- Eliminates Hose Whips
- Contoured Body
- Comply to ISO 4414
Application
- Paint Shop / Die Tooling Shop
- Use where safety is a major concern
- Pneumatic tools and grinders
- Blowing and cleaning applications
TECHNICAL DATA:
| Model No | SI-PB-SQRC-2-FM | SI-PB-SQRC-3-FM | SI-PB-SQRC-4-FM |
| Size | 1/4" | 3/8" | 1/2" |
| Port | Screwed | Screwed | Screwed |
| Max Inlet Pressure | 0 to 15 Kg/cm2 | ||
| Op. Temp | -40 to 700 C | ||
| Seat & Seals | Nitrile | ||
| Internals / Shell | MS Plated / Nylon 66 | ||
