Maxi Lubroset
Features
THREE PIECE COMBINATION UNIT WITH INTERCHANGEABLE PIPE PORT INSERTS:
The unique removable pipe port insert feature also made it possible to design the basic Filter, Regulator and Lubricator modules with wide open flow ports, which have greater flow capacity (up to 250 SCFM) than conventional ported models.
With such a wide operating range, it is simple matter to size the Maxi for your particular application. As long as your flow requirements do not exceed 250 SCFM, specify Maxi in your system pipe size i.e. 1/4", 3/8", 1/2", 3/4", and 1".
In addition, single piece, double ended inserts are available for making up two and three piece combination units..
COMBINATION UNIT:
| FRL | FR | FL | CL |
|---|---|---|---|
| Filter---Regulator---Lubricator | Filter---Regulator | Filter---Lubricator | Combination---Lubricator |

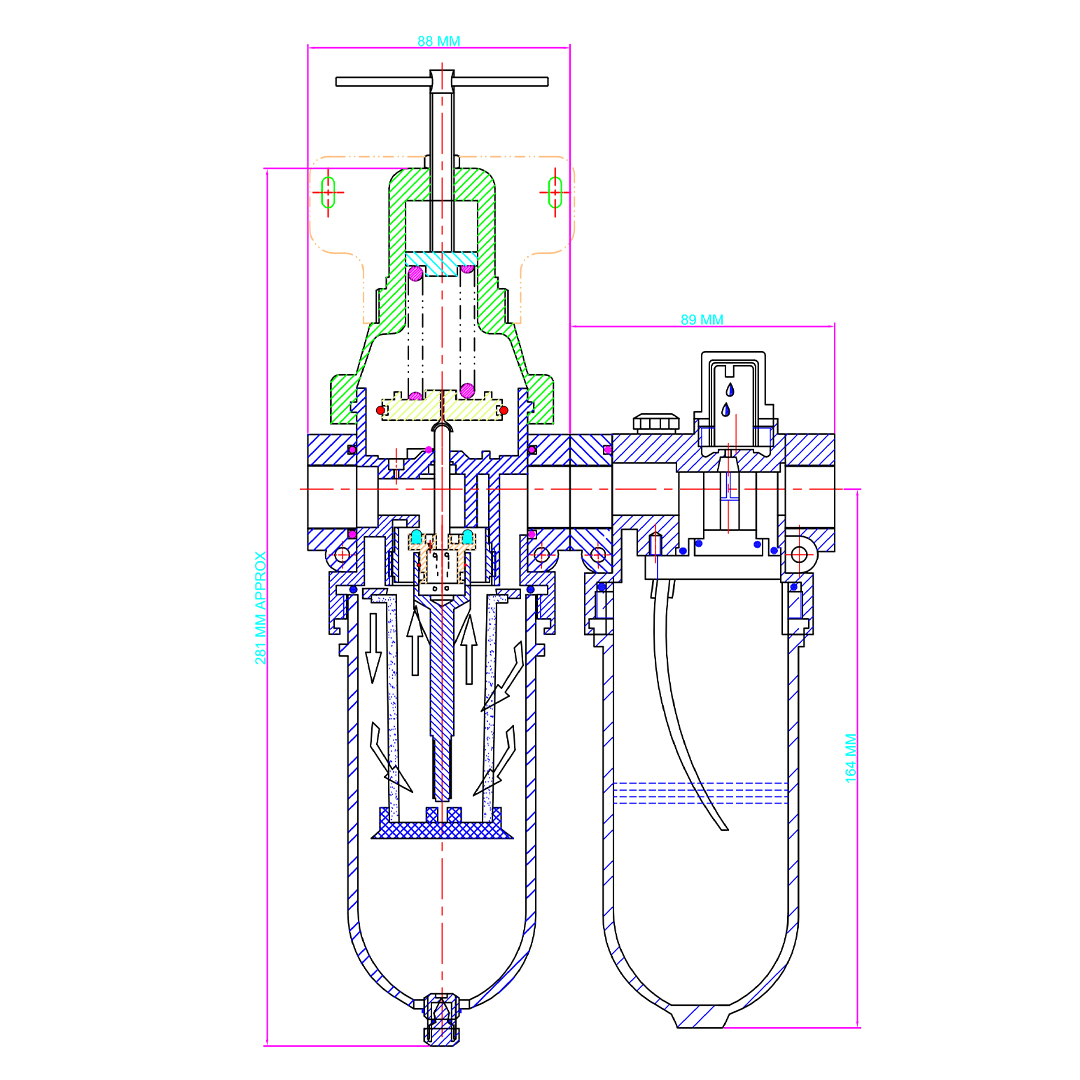

SIZE MODEL:
| Unit Combinations | A | A | B | C |
|---|---|---|---|---|
| FRL | 270 | 292 | 216 | 175 |
| CL | 178 | 203 | 289 | 175 |
| FR | 178 | 203 | 213 | 175 |
| FL | 178 | 203 | 216 | 175 |
* Specify pipe size suffix i.e. 2 for 1/4", 3 for 3/8" etc. for other options add accessories, consult individual units and specify as desired.
The Maxi Series may look expensive--- but it isn't. Designing the basic Filter, Regulator and Lubricator Maxi Module for all pipe sizes allow standardization on component parts. Therefore, cost is comparable in conventional 1/4", 3/8", and 1/2" size models, and substantially lower in 3/4" and 1".
Assure your air operated equipment the best possible protection with the most advanced and flexible design FRL on the market today. Standardization on the SIEMAG MAXI SERIES for all your applications. For Flow up to 250 SCFM
Material
| Body | Pressure Die Cast Zinc |
| Element | Polyproplene (Optional - Sintered Bronze) |
| Deflector | Plastic |
| Seals | Nitrile |
| Bowl | Polycarbonate (Optional - Metallic) |
| Size | 1/4", 3/8", 1/2", 3/4", 1" NPT |
| Plain Baffle | Plastic |
| Bowl Capacity | 270 ml |
| Net Weight | (1/4”-3/4”)- 2.417kg , 1”BSP-3.024 kg , 1”NPT- 2.514 kg PC Bowl (1/4”-3/4”)- 2.777kg , 1”BSP-3.524kg , 1”NPT-2.654kg Metallic Bowl |
| Working Pressure | 0-10 kg/cm2 (Max operating pressure 18 kg/cm2 with Metal Bowl) |
| Temperature | 0-60°C |
| Bonnet | Metallic (with Tee Handle) |
| Output Pressure | 0-10 kg/cm2 (Adjustable) |
