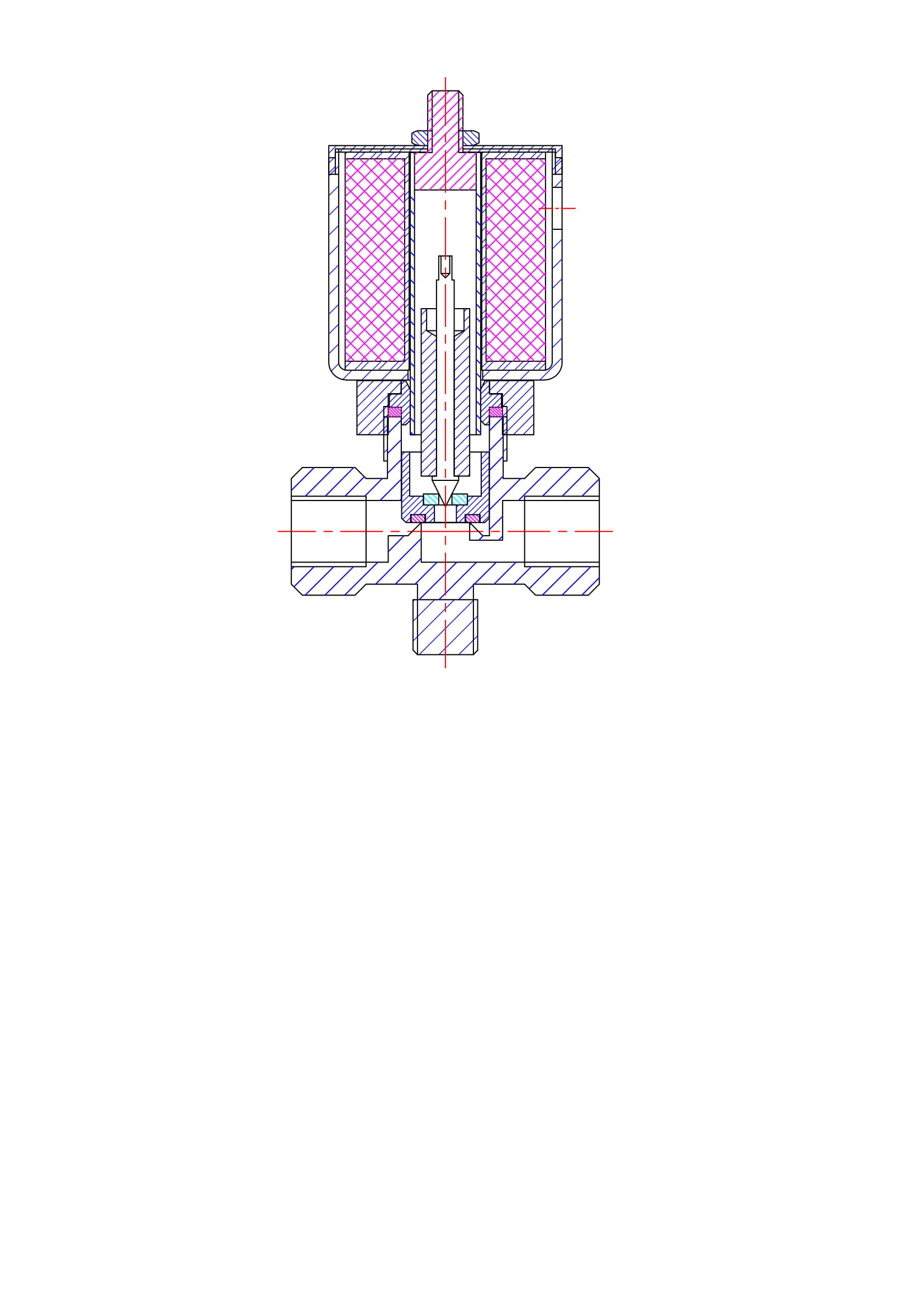

2/2 Direct Acting Globe Type Valves
Features
- Tight shut-off
- No Minimum Pressure required.
- Low Cost - Minimum size.
- Only two moving parts
- Vertically mounted
TECHNICAL DATA:
| Body | Brass / SS316 |
| Size | 1/2' to 1" |
| Orifice | 12 mm to 25 mm |
| Working Pressures | 0.5 to 10 bar |
| Coil Type | Standard |
| Seals | Nitrile / Viton (For high temperature) |
| Media | Air |
| Temp | 70°C Standard (180°C for max) |
Variety of application such as air, gases, liquids & corrosive media. Can be used upto 8 kg/cm2 pressure giving Optimum Flow.
Material
| Coil Type | Brass/Stainless Steel |
| Size | 3/4" & 1" BSP/NPT |
