Maxi Filter

Features

• Two-stage cleaning action - Cyclone separation of liquids! Residual filtering of solids.
• Non-corrosive 25-micron Polypropylene (optional Sintered Bronze) filtering element. (1, 5 & 40 micron optional)
• Manual, Automatic Drain.
• May be removed from line for servicing or replacement without use of tools, or breaking pipe connection.

TECHNICAL DATA:

SIZE MODEL:

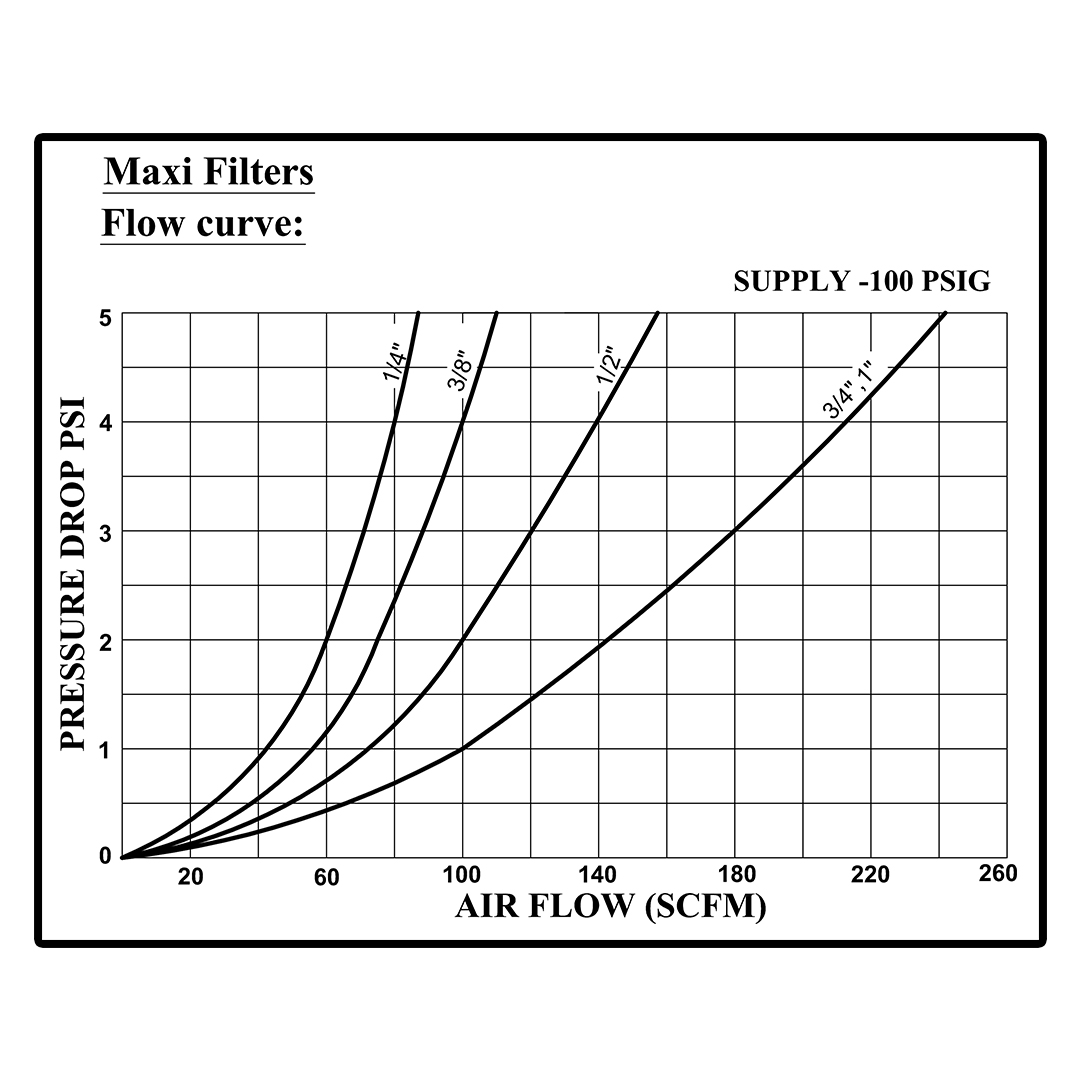

The Maxi Filter featuring removable multi-sized pipe port inserts is the most flexible and advanced design in the market today. The basic Maxi module is designed for efficient water and solids removal with air flow up to 250 SCFM with only modest pressure drop.

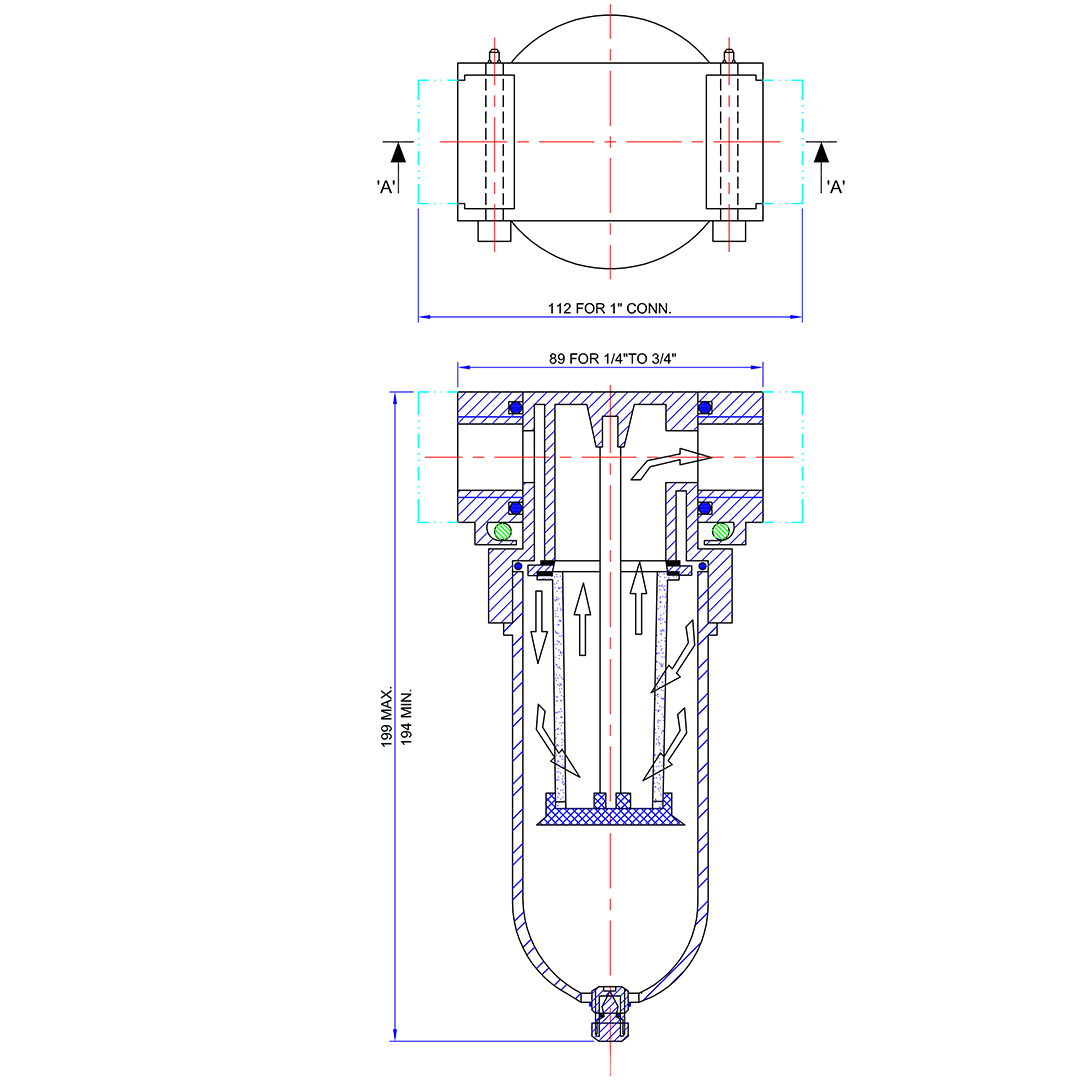

This remarkable performance is made possible through the use of two stage cleaning action. First, the incoming air is centrifically cleaned where compressor carry-over oils, liquid condensate and a high percentage of solid contaminants such as pipe scale are spun out of the air stream and directed into the bottom of the bowl for removal through draincock. Next, the air is drawn through a 40 micron sintered Bronze/Polypropylene filtering element where the remaining solid particles are removed. Wide open porting, exceptionally large filtering surface are and very efficient baffling all contribute to make the Maxi Filter an excellent performer over its entire operating range.

The modular design of the maxi filter coupled with its wide range performance makes it ideally suited for all general purpose in- plant or OEM filtering applications for air flow rates up to 250 SCFM. A Maxi Filter does the job for a small 1/4" size air drill just as well as it does in a 1" main air line header. The only difference is the pipe port insert size. The same applies for rapid cycle 1/2" pneumatically operated welding gun or a continuous operating 3/4" pneumatically grinder. The basic Maxi module does the filtering; the pipe port inserts adapt it to the correct pipe size.

The Maxi Filter is also available with a wide range of options and accessories such as Manual or Automatic Drain 1 to 40 micron sintered Bronze/ Polypropylene filter element. These Features make the maxi filter, most widely acceptable filter available in the Market today.

Material
