Maxi Combinations
Features
- Same high level performance of separate filter and regulator
- Space saving design
- Only two – not four - pipe connections
- Easily disassembled for servicing without the use of tools.
- Can be removes from the line for servicing or replacement without use of tools, or breaking Pipe connections
COMBINATION UNIT:
| FRL | FR | FL | CL |
|---|---|---|---|
| Filter---Regulator---Lubricator | Filter---Regulator | Filter---Lubricator | Combination---Lubricator |

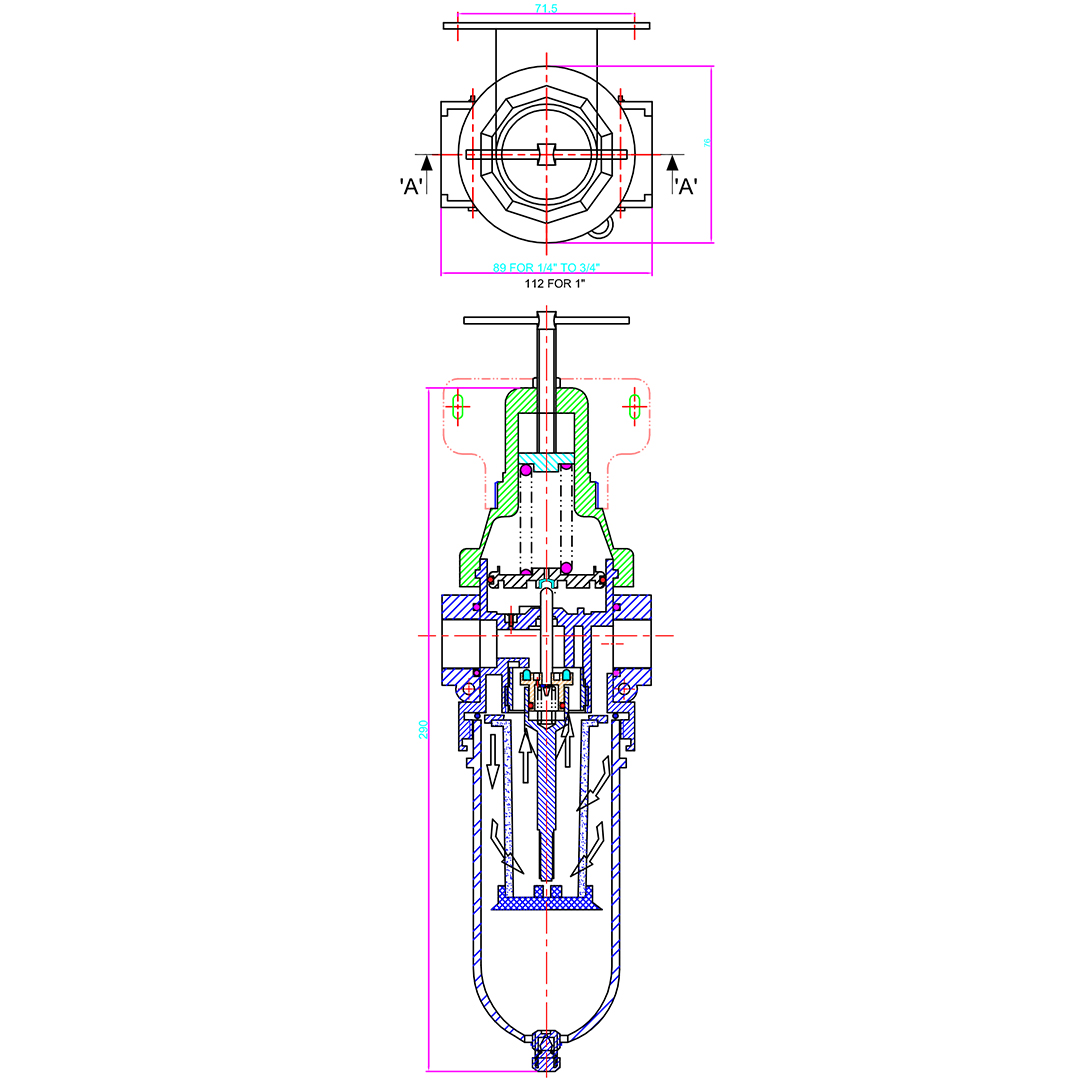

SIZE MODEL:
| Unit Combinations | A | A | B | C |
|---|---|---|---|---|
| FRL | 270 | 292 | 216 | 175 |
| CL | 178 | 203 | 289 | 175 |
| FR | 178 | 203 | 213 | 175 |
| FL | 178 | 203 | 216 | 175 |
* Specify pipe size suffix i.e. 2 for 1/4", 3 for 3/8" etc. for other options add accessories, consult individual units and specify as desired.

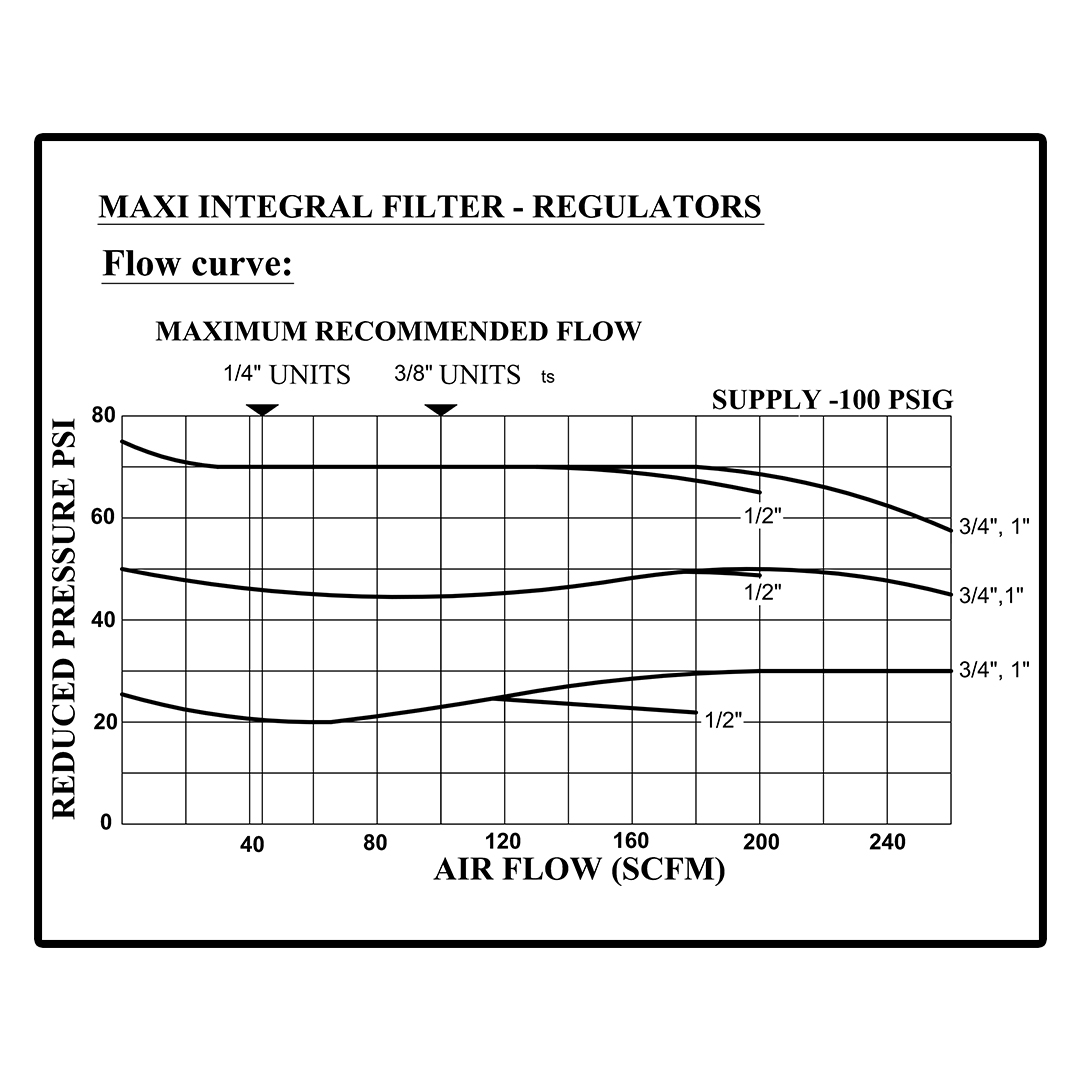

The maxi Integral Filter-Regulator Combines the Maxi Filter and Regulator into one space-saving package. Since it has the same features and performance as the individual filter and regulator, it is ideal for use when over-all height is not a problem. The integral is less expensive and easier to install (only two connections). Also, it can be used in conjunction with lubricator to make a compact, economical Filter Regulator and Lubricator combination unit. The removable, interchangeable pipe port insert feature of the Maxi series, fits any pipe size from ¼” to 1” by just changing the inserts.
Material
| Body | Pressure Die Cast Zinc |
| Element | Polyproplene (Optional - Sintered Bronze) |
| Deflector | Plastic |
| Seals | Nitrile |
| Bowl | Polycarbonate (Optional - Metallic) |
| Size | 1/4", 3/8", 1/2", 3/4", 1" NPT |
| Plain Baffle | Plastic |
| Bowl Capacity | 270 ml |
| Net Weight | (1/4”-3/4”)- 1.458 kg , 1”BSP-1.968 kg , 1”NPT- 1.555 kg PC Bowl (1/4”-3/4”)- 1.708 kg , 1”BSP-2.320 kg , 1”NPT-1.805 kg Metallic Bowl |
| Working Pressure | 0-10 kg/cm2 (Max operating pressure 18 kg/cm2 with Metal Bowl) |
| Temperature | 0-60°C |
| Bonnet | Metallic (with Tee handle) |
| Output Pressure | 0-10 kg/cm2 (Adjustable) |
