Astra Combination
Features
- Exceptional compactness & economy
- Same high-level performance of individual filter & regulator.
- Saves space, reduces pipe connections & costs less
- Full flow gauge port
- Choice of automatic drain
- Built-in relief
- Non-threaded bowl
- Quick release bayonet, bowl & guard assembly
- Non-rising low torque pressure adjusting knob
- Push-pull adjusting knob
Size Model
| Port Size | Model No. |
|---|---|
| G1/4 | ASFR-2 |
| G3/8 | ASFR-3 |
| G1/2 | ASFR-4 |
| Thread Options | NPT / BSP / BSPT |
The Astra Series may look expensive--- but it isn't. Designing the basic Filter, Regulator and Lubricator Module for all pipe sizes allow standardization on component parts. Therefore, cost is comparable in conventional 1/4", 3/8", and 1/2" size models.

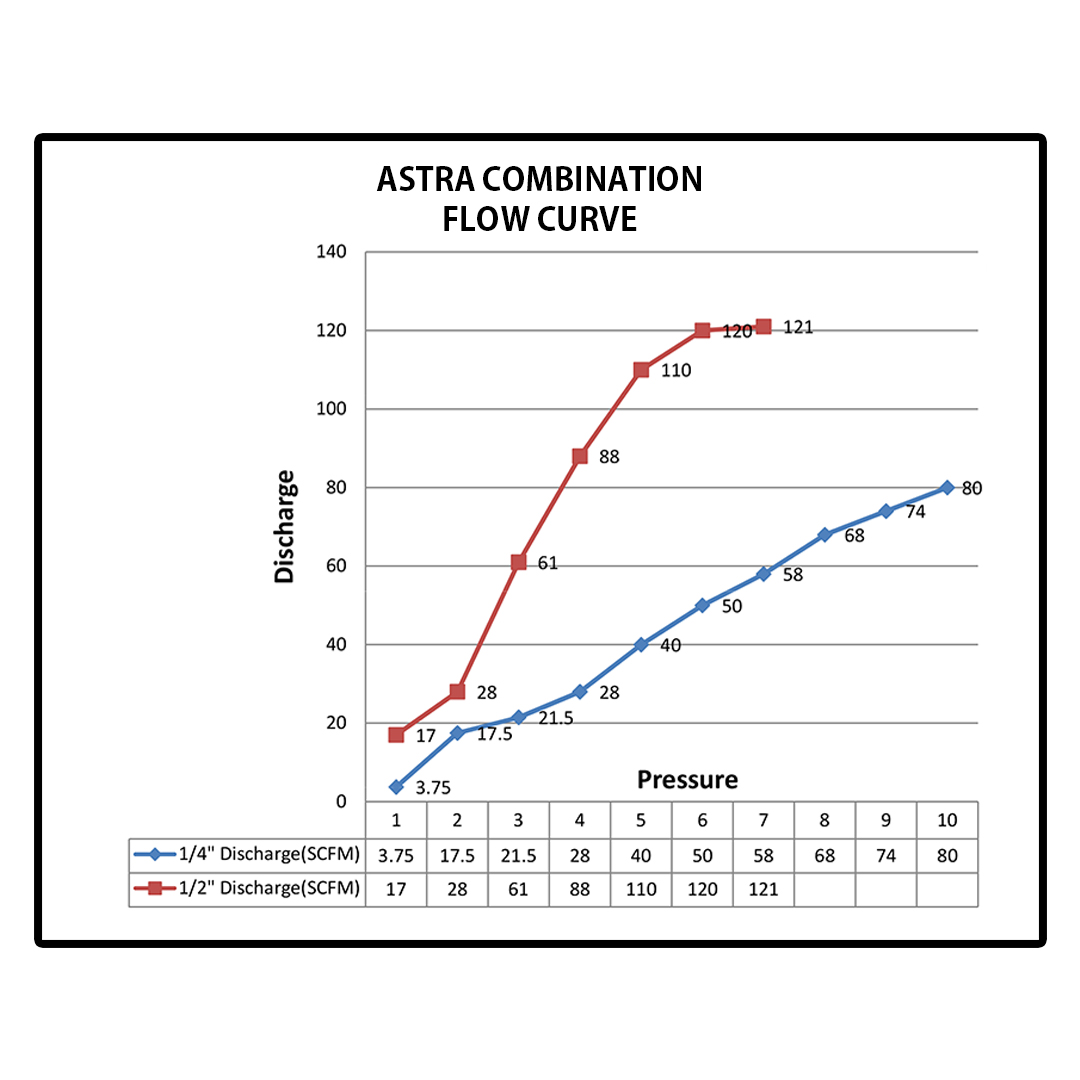

Assure your air operated equipment the best possible protection with the most advanced and flexible design FRL on the market today. Standardization on the SIEMAG ASTRA SERIES for all your applications. For Flow up to 250 SCFM
COMBINATION UNIT:
| FRL | Filter + Regulator + Lubricator |
| FR | Filter + Regulator |
| FL | Filter + Lubricator |
| CL | Combination + Lubricator |
Material :
| Body | Pressure Die Cast Aluminium |
| Element | Polyproplene (Optional - Sintered Bronze) |
| Deflector | Plastic |
| Plain Baffle | Plastic |
| Seals | Nitrile |
| Bowl | Polycarbonate (Optional - Metallic) |
| Size | 1/4", 3/8", 1/2" NPT / BSP / BSPT |
| Bonnet | Plastic |
| Temperature | 0-60°C |
| Bowl Capacity | 130 ml |
| Max Pressure | 10 kg/cm2 (18 kg/cm2 with metal bowl) |
| Output Pressure | 0-10 kg/cm2 (Adjustable) |
| Net Weight | 603 gm (Approx) |
| Working Pressure | 0-10 kg/cm2 |
