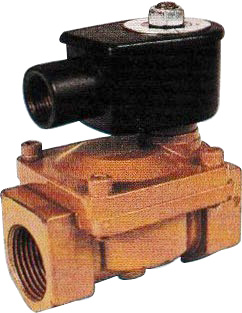

2 Way Diaphragm
INTERNAL PILOT OPERATED
- Normally Open & Normally Closed
- Body : Brass & Stainless Steel
- Sizes : 1/4”to 2” BSP/ NPT
- Seals : Nitrile (optional EPDM/ Viton)
Features
- Forged Brass Construction
- Internal Pilot Operated
- Minimum Operating Pressure 0.5 kg/cm2.
- Nitrile - Polyurethane - Viton Diaphragm depending upon application.
- Water tight Solenoid enclosures
- Built to withstand Millions of trouble free cycles
Used on a Broad variety of Installation such as Instrumentation,Laundry equipment,Spraying equipment, Dental equipment,Health club etc., providing single Automatic controlof the flow of media in a pipe line.
TECHNICAL DATA:
| Model No | DT-2 | DT-3 | DT-4 | DT-6 | DT-8 | DT-14 | DT-14 |
| Size | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/2" | 2" |
| Port | [BSP,NPT] | [BSP,NPT] | [BSP,NPT] | [BSP,NPT] | [BSP,NPT] | [BSP,NPT] | [BSP,NPT] |
| Op. Pressure | 0 to 10 Kg/cm2 Standard (for high pressure contact H.O) | ||||||
| Op. Temp | -20 To 180o C | ||||||
| Seals | Nitrile / EPDM / Viton | ||||||
| Material | Brass (Br) / SS304 (S4) / SS316 (S6) | ||||||
| Type | Add suffix “NO” for Normally Open & “NC” for Normally Closed | ||||||
