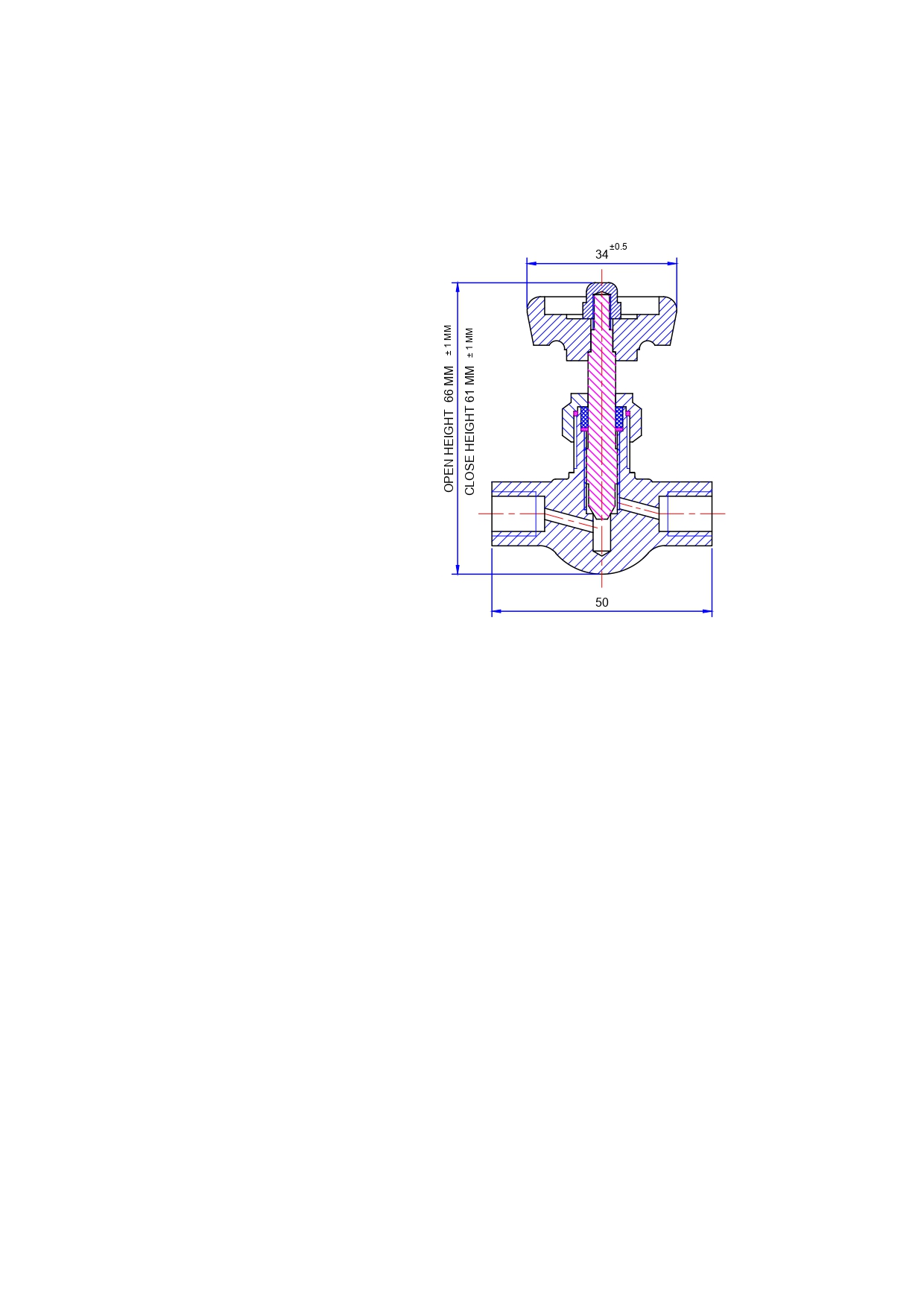

B11 Needle Valves
Siemag Forged Body valves are one piece body formed on a drop forge, i.e. Intergralbonnet.
FEATURES:
- Ease of installation
- Exacting service
- Accurate regulation of any pressure
- Compact body
- Simple construction
- Reliable & affordable
Size Model:
| MODEL NO. | SIZE |
|---|---|
| B/S4/S6-11-H(ST/AN)-F1 | 1/8” NPT/BSP |
| B/S4/S6-11-HP-(ST/AN)-M1 | 1/8” NPT/BSP |
| B/S4/S6-11-HP-(ST/AN)-T1 | 1/8” OD TUBING |
| B/S4/S6-11-HP-(ST/AN)-M2 | 1/4” NPT/BSP |
| B/S4/S6-11-HP-(ST/AN)-T2 | 1/4”OD TUBING |
| B/S4/S6-11-HP-ST/AN-FM1 | 1/8” NPT/BSP |
HOW TO ORDER :
- Select Prefix B for BRASS, S4 for SS304 & S6 for SS316
- Select Prefix ST for STRAIGHT PATTERN & AN for ANGLE PATTERN
- How to Order : If your requirement is of 1/8” Needle Valve Straight Pattern with Tube Fittings connection in Brass. Your corresponding Model No. is B-11-HP-ST-T1.
General purpose, low cost, positive shut off & regulating for
- Instruments
- Pneumatic lines
- Control panels
- Natural gas
- Flow meters
- Gauge shut off
- Sampling lines
- Chemical processing
- Laboratory and research applications
| Body | Brass & Stainless Steel |
| Size | 1/8" Male, Female & OD Tubing |
| Pressure Range | Upto 200 Bar (For High Pressure contact HQ) |
| Size | 1/4" Male Only & Tube Fitting |
| Handle | Bakelite knob |
| Pattern | Straight & Angle |
| Seals | Teflon for high pressure |
| Asbestos | For high pressure & temperature |
