Astra Regulator
Features
- Compact design
- High flow capacity
- Large diaphragm for greater Sensititivity
- Balance valve design for optimum pressure control
- Non rising low torque pressure Adjusting knob
- Full flow gauge ports
- Push Pull adjusting knob With Locking Arrangement
Size Model
| Port Size | Model No. |
|---|---|
| G1/4 | ASR-2 |
| G3/8 | ASR-3 |
| G1/2 | ASR-4 |
| Thread Options | NPT / BSP / BSPT |

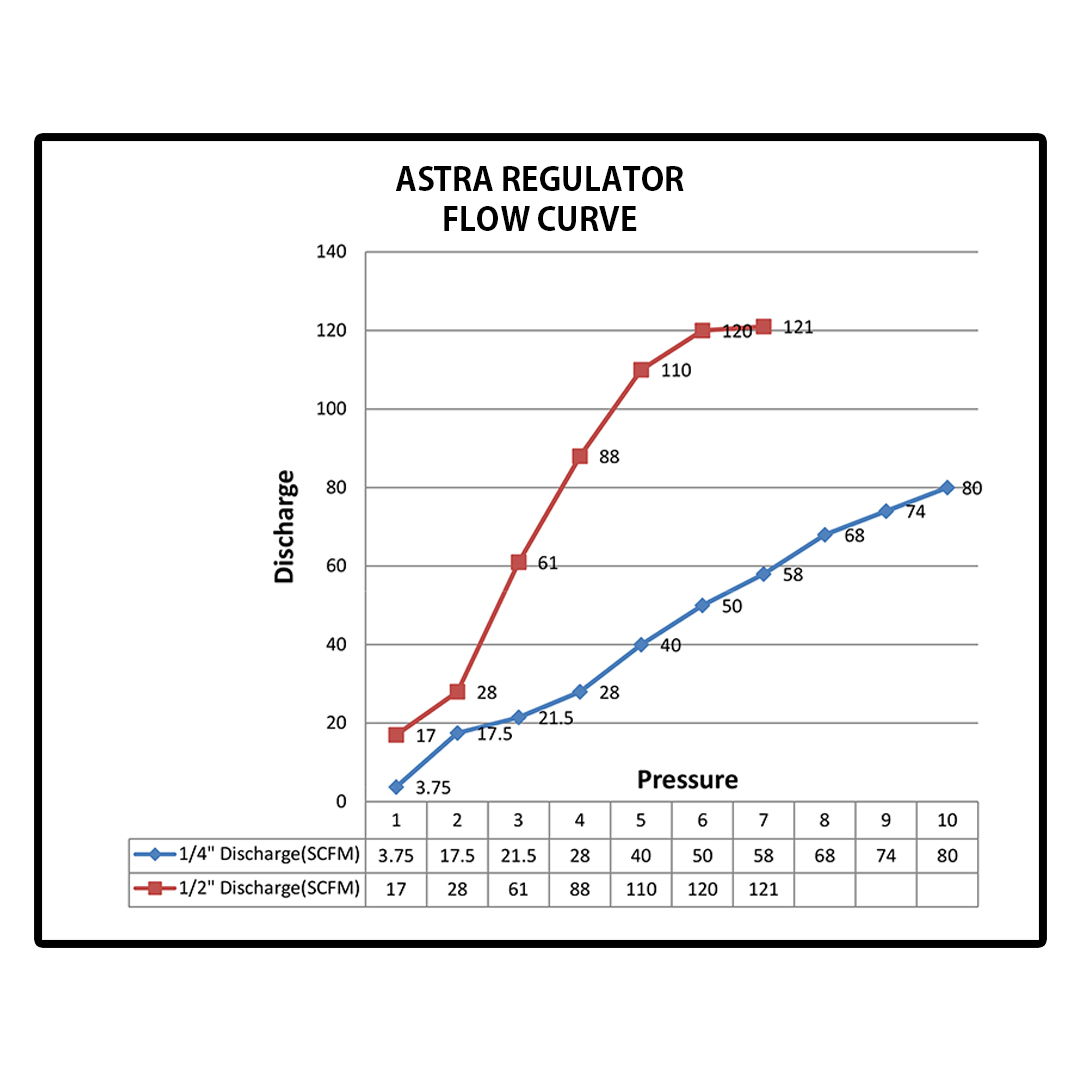

| Flow Rate | 0 to 140 Scfm |
ACCESSORIES
| Panel Mounting Nut | Hole Die 42mm. Mounting bracket with screws |
| Pressure Gauge | 2” dial ¼ “ NPT back connection (suffix ‘G’ while ordering) |
| Non Relieving Type | Suffix “NR” while ordering |

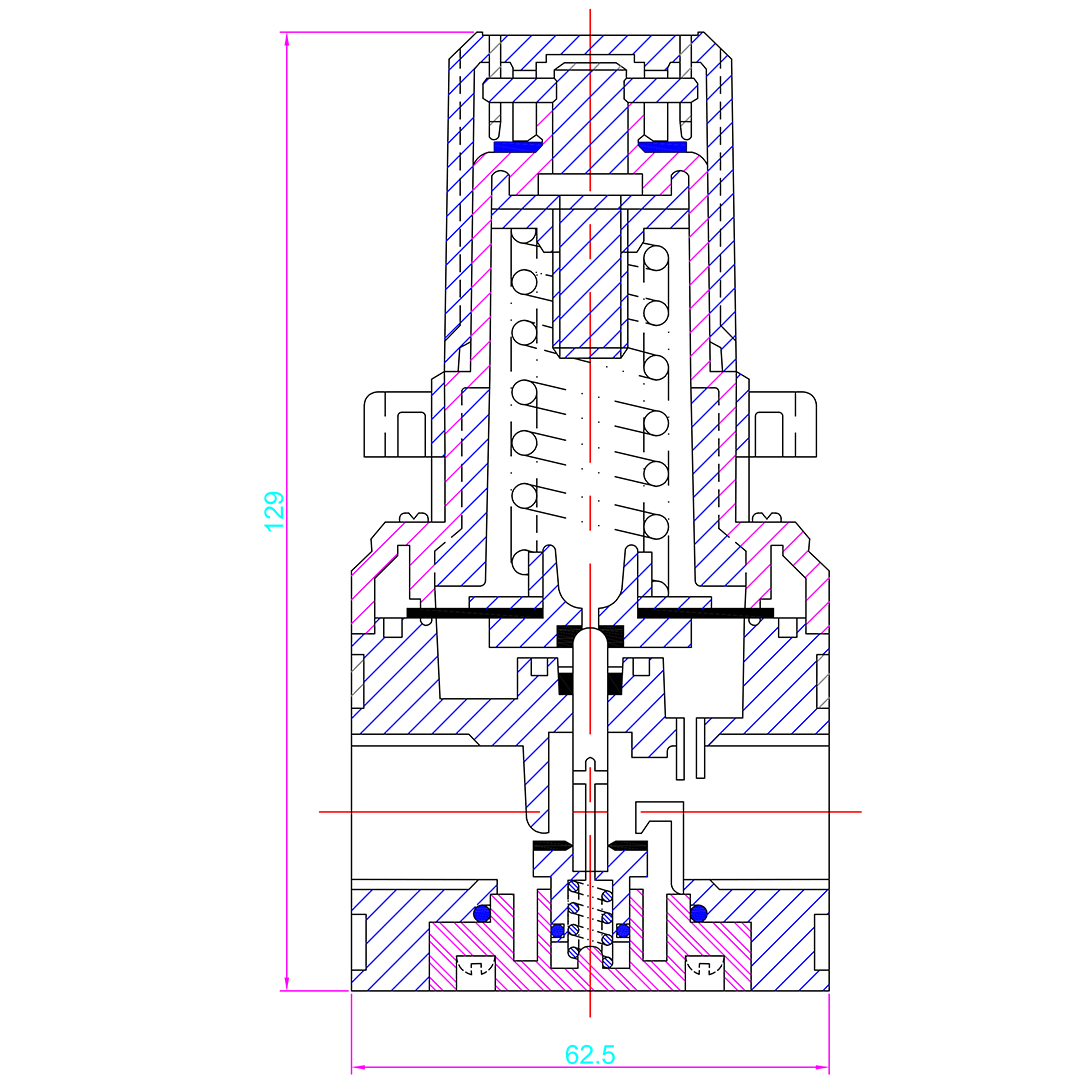

The Astra Series Regulator precisely controls air line pressure at any set level from 250 PSI down to zero and any flow rate up to 140 SCFM. Variation in either supply pressure or air flow rate has no significant effect on regulated pressure. A unique construction feature of the Astra Regulator is the bonnet which is fitted with bayonet lock arrangement for easy servicing or changing of adjustment spring range. The wide flow and pressure range of Astra regulator plus its many features make it perfect choice for general in-plant or OEM applications where modern, economically placed regulator is required.
Material
| Body | Pressure Die Cast Aluminium |
| Size | 1/4", 3/8", 1/2" NPT / BSP / BSPT |
| Bonnet | Plastic |
| Temperature | 0-60°C |
| Max Pressure | 10 kg/cm2 (18 kg/cm2) |
| Output Pressure | 0-10 kg/cm2 (Adjustable) |
| Net Weight | 442 (approx) |
| Input Pressure | 0-10 kg/cm2 |
| Knob | Plastic (Locking Type) |
| Diaphragm | Nitrile |
| Type | Relieving (Optional-Non Relieving) |
