Hi-Flow Regulator 1 inch to 2 inch
Features
- Hi-Flow in a compact size
- Diaphragm operated for accurate regulation
- Two 1/4" full flow gauge port can be used as additional 1/4" full flow outlet ports
- Threads in BSP / NPT available
TECHNICAL DATA:
| Pressure Rating | Max Working Pr. 250 PSI | |
| Secondary Pressure range | Std. Pr. 150 PSI (10Kg / cm2) | |
| Port Threads Size | 1" ; 1-1/4" ; 1-1/2" ; & 2" BSP / NPT (F) | |
| Gauge Ports | 1/4" NPT (F) | |
Size Model
| Size | Model No. |
|---|---|
| 1” NPT/BSP/BSPT | RHF - 10 |
| 1.1/4” NPT/BSP/BSPT | RHF- 12 |
| 1.½” NPT/BSP/BSPT | RHF- 14 |
| 2” NPT/BSP/BSPT | RHF- 16 |
The Hi- Flow Std. Series Regulators are designed to provide quick response and accurate pressure regulation for the most demanding Hi- flow Industrial applications. The unique impregnated diaphragm, designed for accurate regulation can withstand demanding application and rigourous cycles.
Regulator Selection:
- Determine maximum system flow requirement.
- Determine maximum allowable pressure drop at rated flow in SCFM.

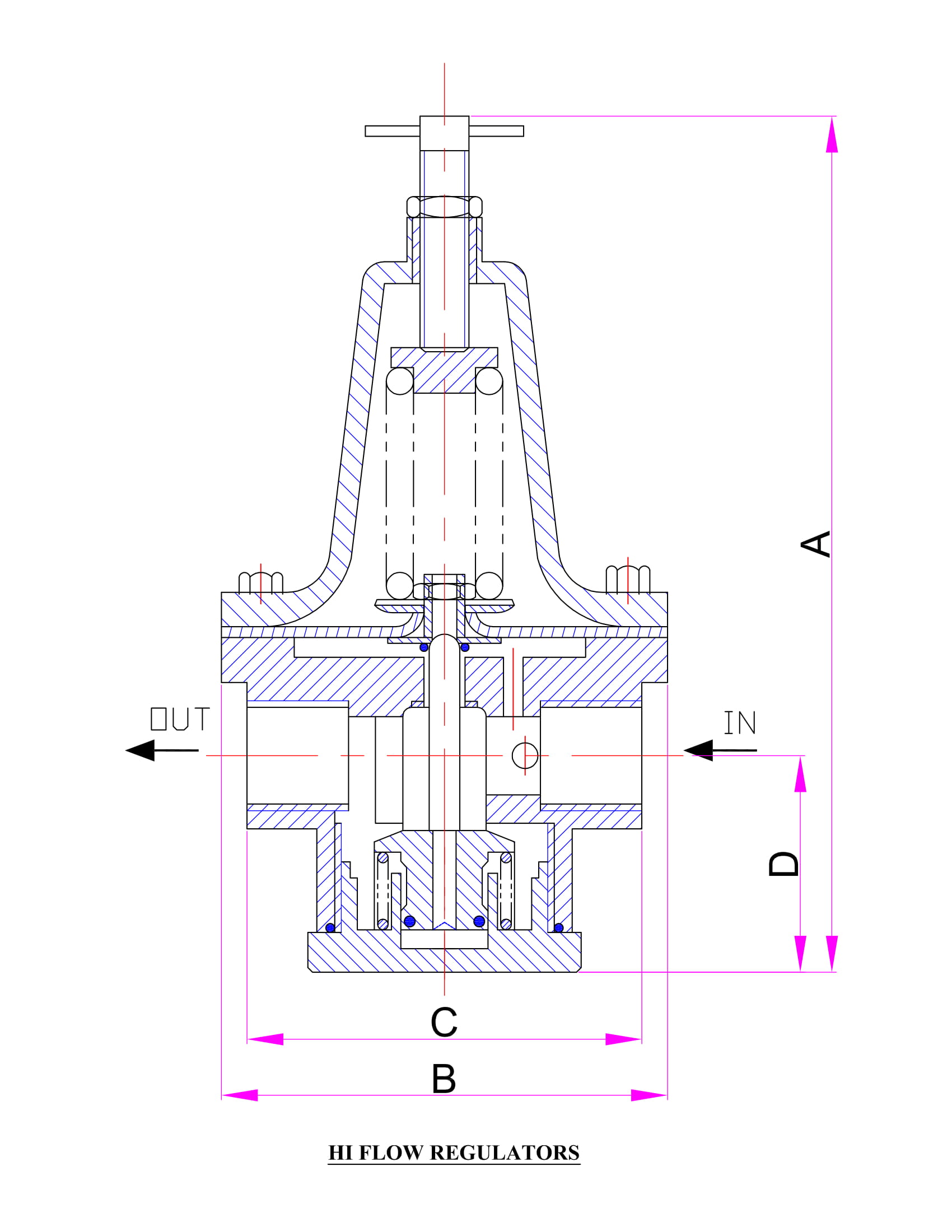

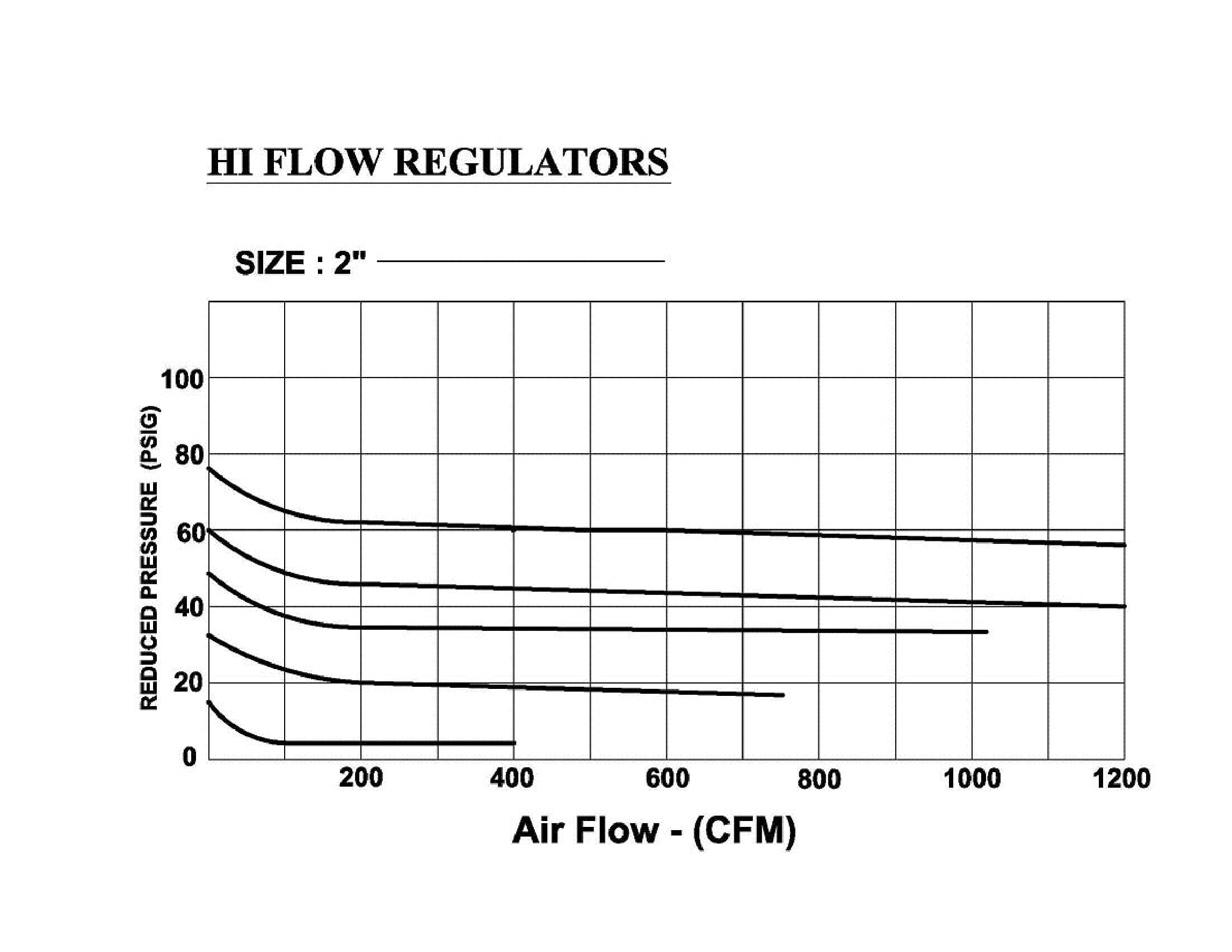

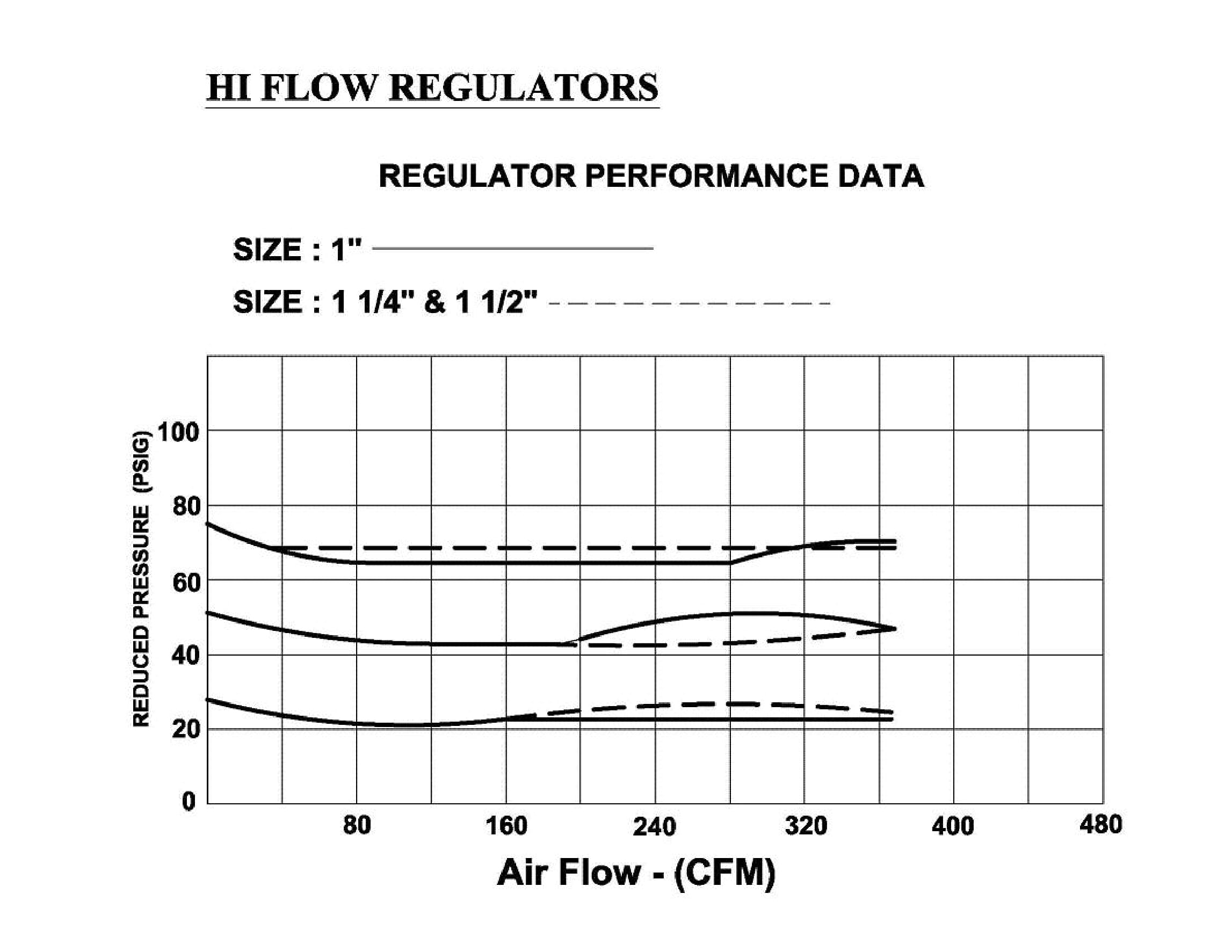

- Refer to flow chart and select regulator by choosing curve that offers minimum pressure drop at desired flow in SCFM
Material
| Body | Pressure Die Cast Aluminium |
| Element | 0-60°C |
| Size | 1", 1.1/4", 1.1/2", 2" BSP / NPT / BSPT |
| Max Pressure | 10 kg/cm2 (18 kg/cm2 with metal bowl) |
| Temperature Range | 0-60°C |
| Net Weight | 1” Size : 1.850 kg (approx) 1-1/4” Size : 3.385 kg (approx) 1-1/2” Size : 3.385 kg (approx) 2” Size : 4.068 kg (approx) |
| Inlet Pressure | Standard 10 kg/cm2 / Max 21 Kg/cm2 |
| Bonnet | Metallic (with Tee Handle) |
| Input Pressure | 10 kg/cm2 |
| Output Pressure | 0-10 kg/cm2 (Adjustable) |
| Diaphragm | Nitrile |
| Type | Relieving (Optional-Non Relieving) |
