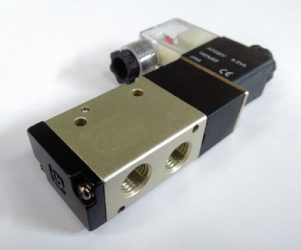

3/2 way Internal Pilot Operated

Descriptions
Specifications
Send Enquiry

Features

Aluminimum Body Construction
Internal Pilot Operated
Safe & Reliable Operation
Fast Acting
Manual Override provided
Long service life
Spring return pilot
Full bore orifice

Automatic Solenoid valves may be used to Contrrol Instrument air. High pressure gases gravity feed and other applications where Minimum size & Low cost are decisive factors.

Typical installations of shut Off / Laundry Equipments Spraying Equipment / Dental equipment / Health Clubs / Water Taps / Urinals / Boiler applications Providing automatic solutions to all manual process

TECHNICAL DATA:

Body	Aluminium
Size	1/4" , 3/8” , 1/2"
Thread	BSP (F)
Pressure Range	1.5 to 10 KG/cm2
Coil Voltage	12VDC /24 VDC /110 VAC /220 VAC / 230 VAC
Coil	Class A Standard Optional Class F (150 Deg) / Class H (180 Deg)
Enclosure	IP 55 / IP 65 / IP 66 / IP 67
