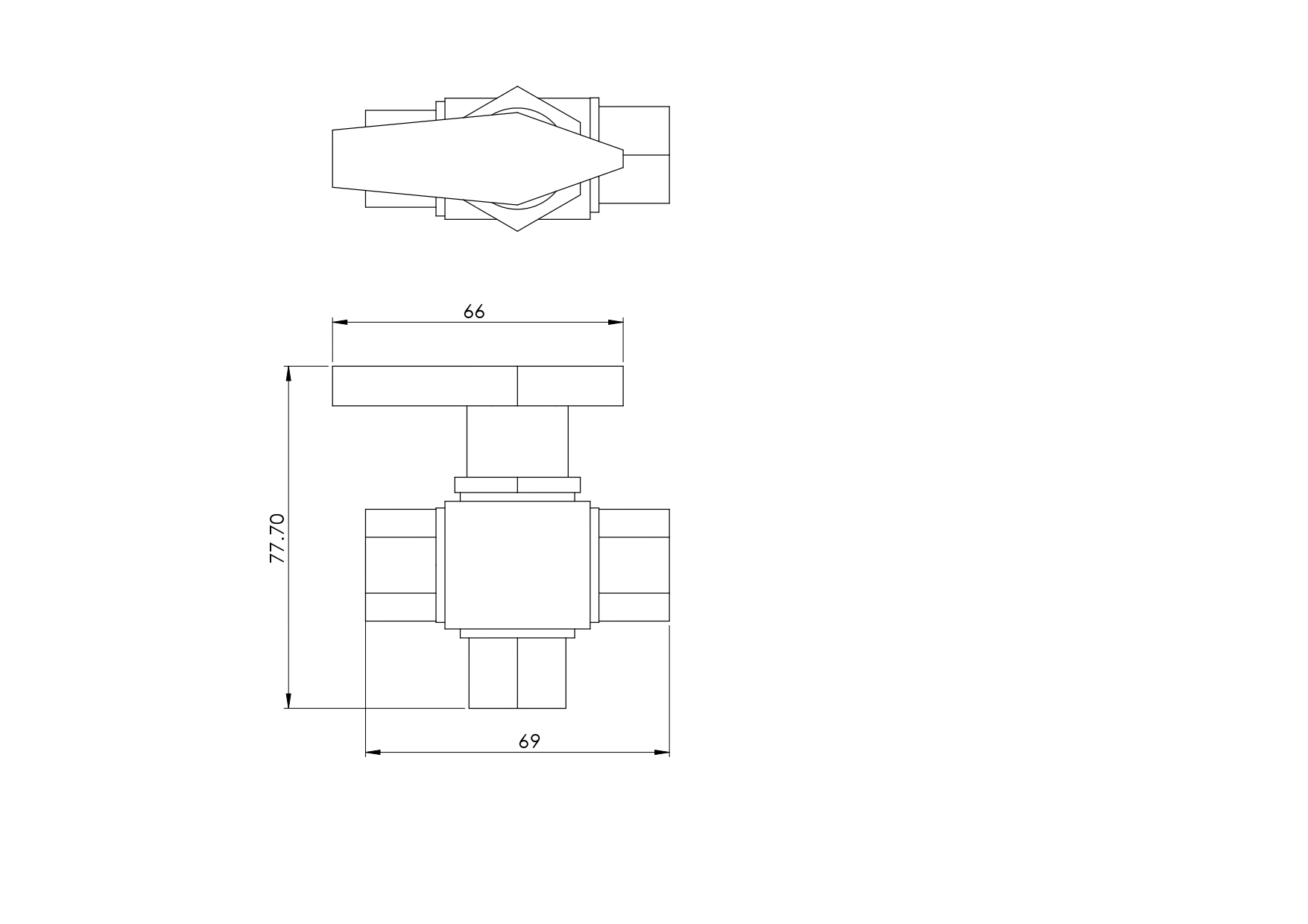

Ball Valve 3 Way

It's robust in construction, corrosion resistant and very easy to maintain.

FEATURES:

  • Available in SS304 / SS316 / Brass
  • Maximum working pressure up to 10.000 PSI
  • Variety of end connection male-female - NPT / BSP / BSPT & Tube fitting
  • Available in 2 way, 3 way, 5 way construct
  • Excellent sealing
  • Easy operation
  • Exclusively safe
  • Used as a Diverter valve
  • Port screwed

These valves allow easy ability to fix the seat if the problem arises without having to take off the body of the valves from the line.

Body SS304 / SS316
Size 1/8" , 1/4" , 3/8" , 1/2" , 3/4" , 1"
Operating pressure 10 kg/cm2 standard
High pressure High pressure
Operating temperature 20-180 C
Seat & Seals Teflon
Construction 3 way
