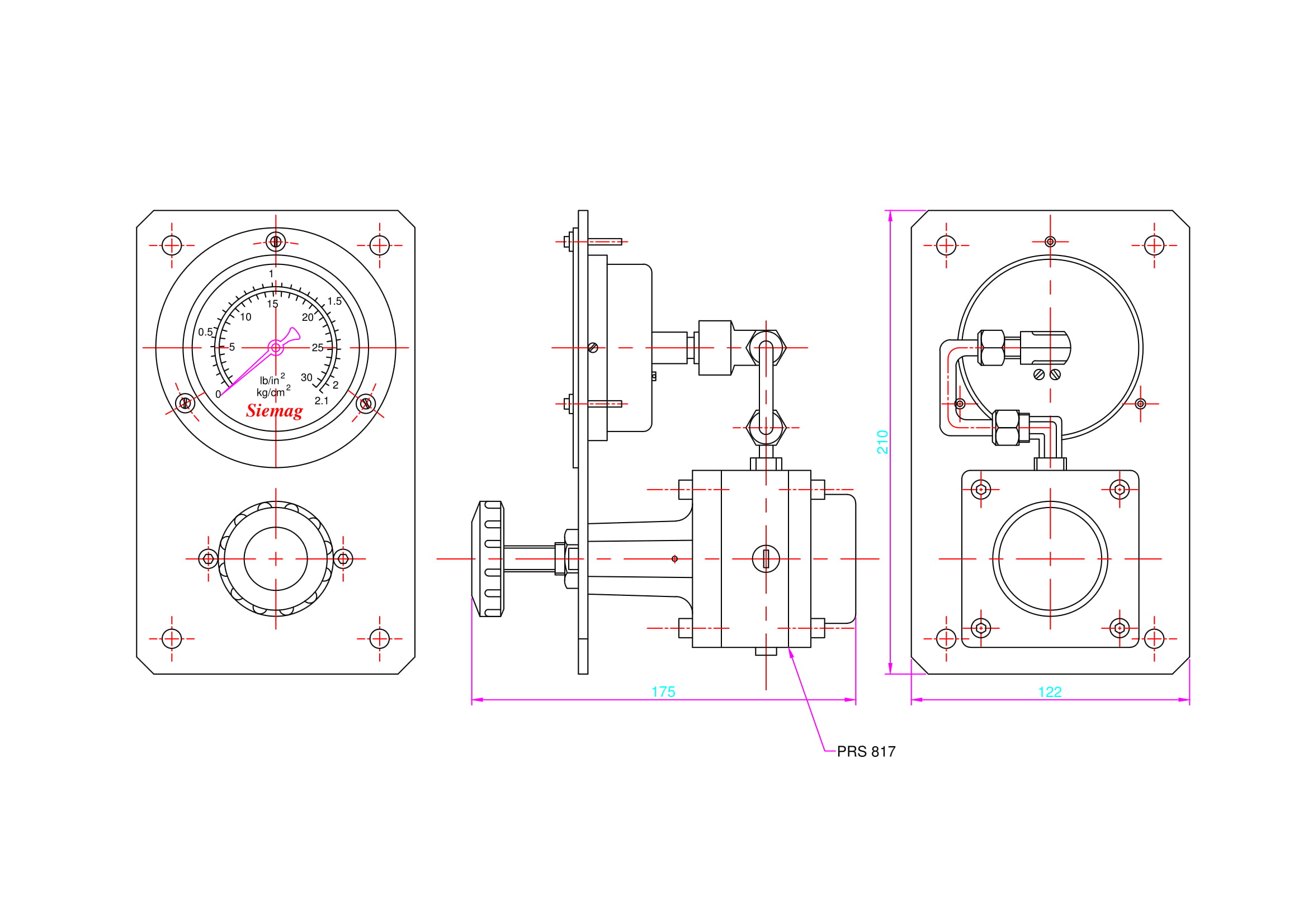

Panel Loader Model PL817
Features
- Instrument Accuracy
- Large flow capacity
- Accurate flow and regulation characteristics
- Rapid response
- Greater stability
ACCESSORIES & OPTIONS:
| Pressure gauge | 75 mm Dial 1/4" NPT back connection |
Specifically designed and developed for use in tyre industry these Panel Loader instrument regulators come with a 3" dial gauge which are visible from a distance. These rugged designed panel loaders as they are commonly called are very low on maintainance and can be serviced with convenience and ease.
Mounted on a MS powder coated plate these regulators are available with outlet pressure ranges 0-2.1 kg/cm2 (30 PSI) / 0 -4.2 kg/cm2 (60 PSI) / 0-7 kg/cm2 (100 PSI) / 0-10 kg/cm2 (150 PSI)
Material
| Body, Bonnet & Bowl | Aluminium / Stainless Steel 304/316 |
| Seals | Nitrile |
| Diaphragm | Terene impregnated Buna N |
| Plunger & Seat | SS 304 / SS 316 |
| Handle | Bakelite Knob / Tee Handle |
| Type | Relieving / Non - Revlieving |
| Inlet Pressure | 0-10 Kg/cm2 |
| Outlet Pressure | Ranges between (0-2.1 kg/cm2, 0-4.2 kg/cm2, 0-7 kg/cm2, 0-10 kg/cm2) (30 PSI) (60 PSI) (100 PSI) (150 PSI) |
| Bracket | Wall Mounting |
| Net Weight | 1.717 Kg |
