Hi-Flow Lubricator 1 inch to 2 inch
Features
- Dial set oil feed adjustment
- Full flow Sight Glass
- A large fill port
- Fine flow adjustment
- Threads in BSP/NPT
TECHNICAL DATA:
| Pressure Rating | Maximum Working Pr. 250 PSI with Metallic Bowl | |
| Pressure and Temperature | Std. Pr. 150 PSI at 70˚C | |
| Secondary Pressure range | Std. Pr. 150 PSI (10Kg / cm2) | |
| Port Threads Size | 1" ; 1-1/4" ; 1-1/2" ; & 2" BSP / NPT (F) | |
| Suggested Lubricant | Enclo 44/Servo 32 | |
| Bowl Capacity | 16 OZs | |
| Gauge Ports | 1/4" NPT (F) | |
Size Model
| Size | Model No. |
|---|---|
| 1” NPT/BSP/BSPT | LHF - 10 |
| 1-1/4” NPT/BSP/BSPT | LHF- 12 |
| 1-1/2” NPT/BSP/BSPT | LHF- 14 |
| 2” NPT/BSP/BSPT | LHF- 16 |
With its automatic by-pass and venturi automization system, Siemag Hi-Flow Lubricators provide exceptionally wide range performance. Featured is “Dial-set” Operating adjustment whereby the oil is easily set to the desired feed rate, whether air supply is on or off. Once the rate is set the Lubricator automatically compensates for changes in air flow demand. A Sight Glass gives visual indication of the oil Drop rate. With this wide operating range, the Std. series Lubricator is perfect for any In-plant or OEM application between 2 and 400 SCFM.
Regulator Selection:
- Determine maximum system flow requirement.
- Determine maximum allowable pressure drop at rated flow in SCFM.

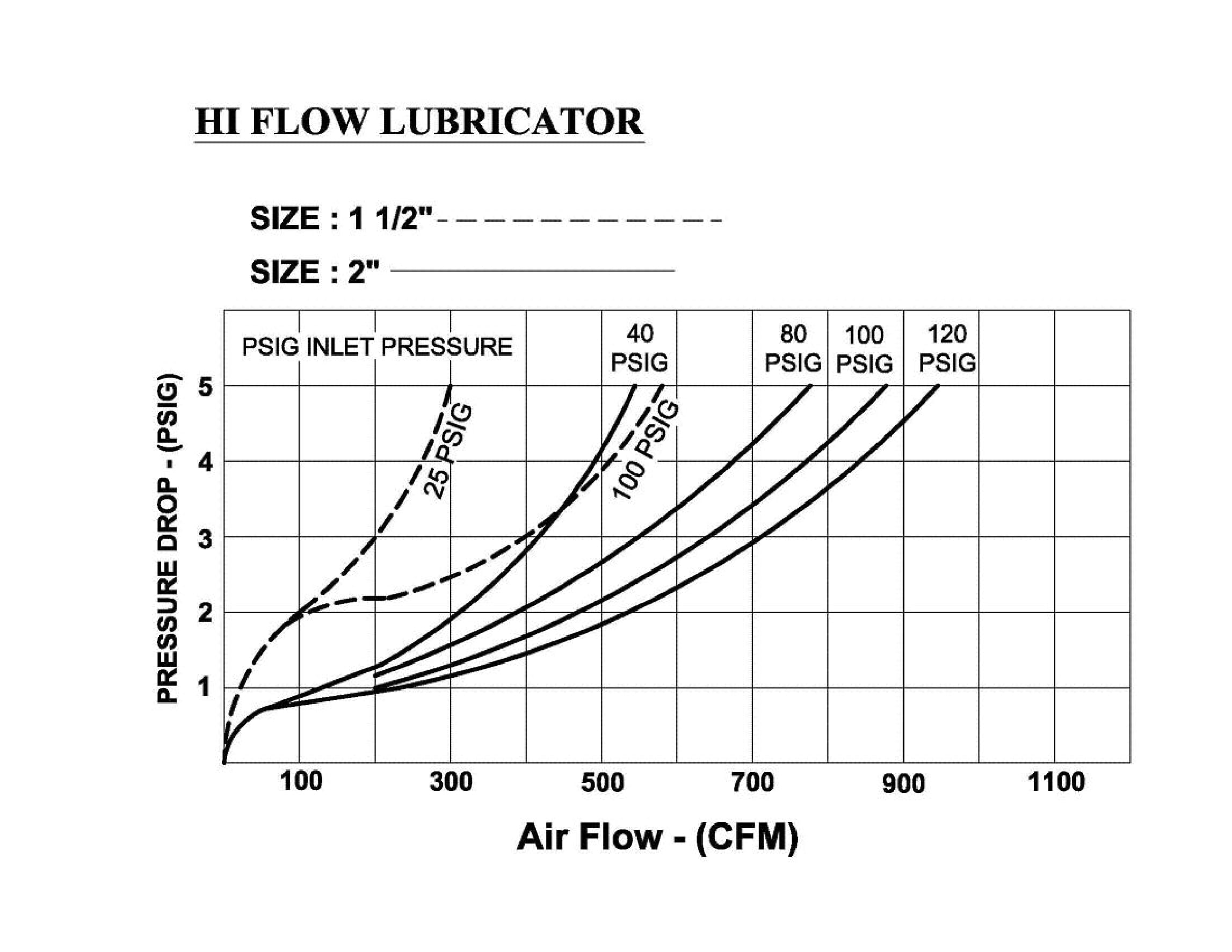

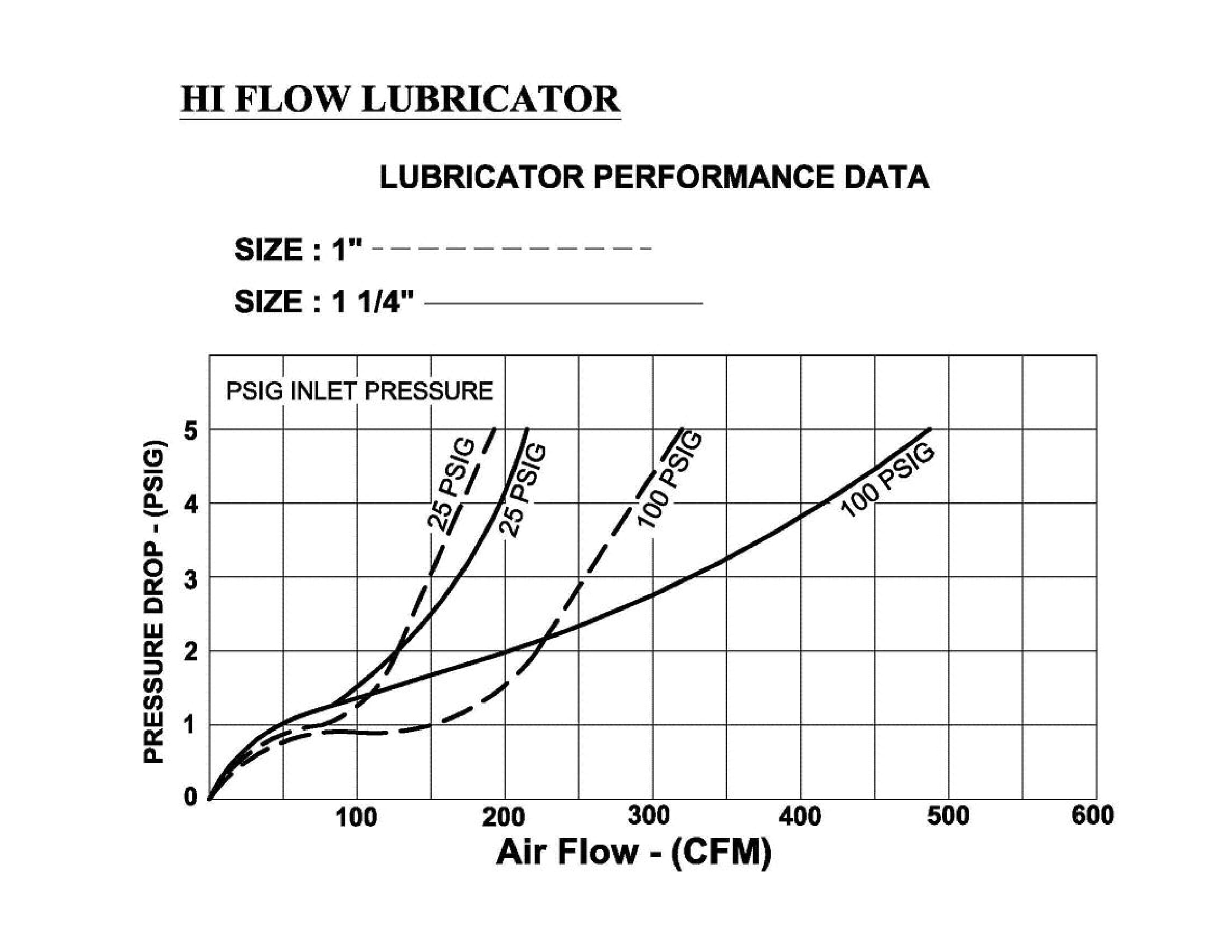

- Refer to flow chart and select Lubricator by choosing curve that offers minimum pressure drop at desired flow in SCFM
Material
| Body | Pressure Die Cast Aluminium |
| Temperature Range | 0-60°C |
| Size | 1", 1-1/4", 1-1/2", 2" BSP / NPT / BSPT |
| Max Pressure | 10 kg/cm2 (18 kg/cm2 with metal bowl) |
| Net Weight | 1” Size : 1.223 kg (approx) PC Bowl / 1.475 kg (approx) Metal Bowl 1-1/4” Size : 1.616 kg (approx) PC Bowl / 1.884 kg (approx) Metal Bowl 1-1/2” Size : 1.485 kg (approx) PC Bowl / 1.931 kg (approx) Metal Bowl 2” Size : 1.807 kg (approx) PC Bowl / 2.059 kg (approx) Metal Bowl |
| Inlet Pressure | Standard 10 kg/cm2 / Max 21 Kg/cm2 |
| Bowl | Polycarbonate (optional Metallic) |
| Seals | Nitrile |
| Sight Glass | Polycarbonate |
