Precision Filter Model 815
Features
- Instrument Accuracy
- Large flow capacity
- Accurate flow and regulation characteristics
- Rapid response
- Greater stability
TECHNICAL DATA:
| Maximum Inlet Pressure - | 21 Kg/cm2 |
| Maximum fiow Capacity | 22 SCFM at 1.4 kg/cm2 (20 PSIG) Type - Relieving / Non Reliving |
| Outlet Pressure ranges | 0-2.1 kg/cm2 (30 PSI) / 0 -4.2 kg/cm2 (60 PSI) 0-7 kg/cm2 (100 PSI) / 0-10 kg/cm2 (150 PSI) |
| Port Size | 1/4" / 3/8" / 1/2" [NPT / BSP (F)] |
| Gauge Port | 1/4" NPT / BSP (F) |
| Filteration | 5 / 25 / 40 microns |

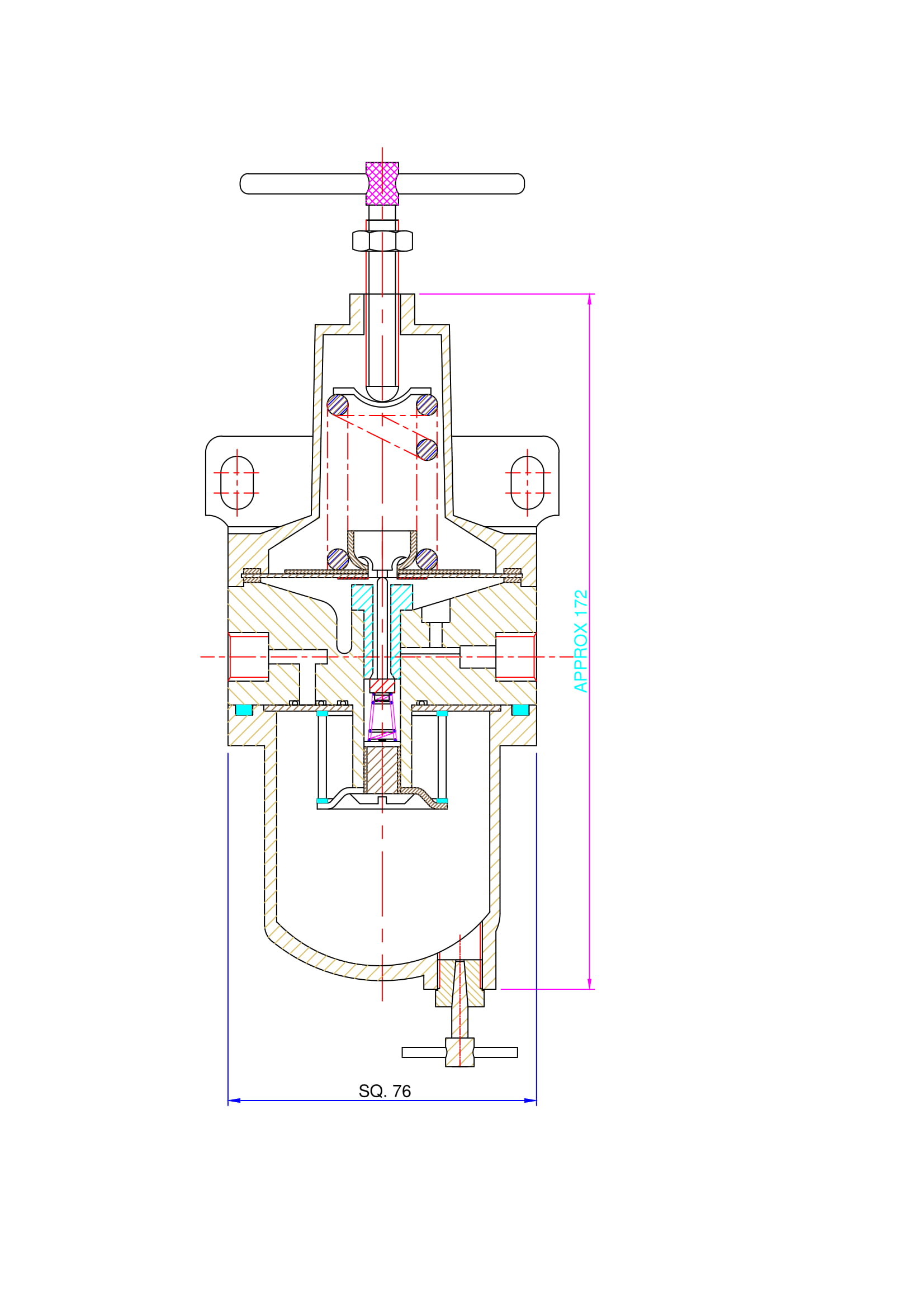

Size Model:
| Size | Model No. |
|---|---|
| 1/4" NPT/BSP | PRS815-2 |
| 3/8” NPT/BSP | PRS815-3 |
| Outlet Pressure ranges | 0-2.1 kg/cm2 (30 PSI) / 0 -4.2 kg/cm2 (60 PSI) 0-7 kg/cm2 (100 PSI) / 0-10 kg/cm2 (150 PSI) |
| Port Size | 1/4" / 3/8" / 1/2" [NPT / BSP (F)] |
| Gauge Port | 1/4" NPT / BSP (F) |
| Filteration | 5 / 25 / 40 microns |
How To order :
| Model | Range 0-2.1 kg/cm2 | Range 0-4.2 kg/cm2 | Range 0-7 Kg/cm2 | Range 0-10 Kg/cm2 | |
| PRS 815 | 2B | 4B | 7B | 10B | |
|
For the desired Pr. Range put the corresponding No. after the model For Stainless Steel 304 & Stainless Steel 316 use prefix S4 & S6 Use suffix “SB” for Sintered Bronze & “PP” for Polypropylene |
|||||
Siemag Precision Series Filter Regulators are specifically designed for use in the process Instrument & fluid power field. These high capacity industrial combinations are compact & economical to provide clean dry & regulated air for process instruments, diaphragm actuated control valves, positioners, transmitters, air cylinders and I to p converters etc.. All PRS models have a large outlet volume for greater stability & built in aspirating characteristics to maintain controlled regulation over wide range of flows.
ADVANTAGES :
- The complete SS 316 construction PRS Filter Regulator is designed for use in corrosive atmospheres of steel plants, refineries, fertilizer plants & at off shores (sea salty atmosphere).
- All precision Series Filter Regulator have weather proof enclosure (IP65 certified) ensuring long life of the internals
- Drains out liquid contaminant without affecting set pressure.
- Relieving / non Relieving type these AFR's are available in 1/4" / 3/8" and 1/2" (NPT / BSP) size.
Material
| Body, Bonnet & Bowl | Aluminium / Stainless Steel 304/316 |
| Element | Polyproplene (Sintered Bronze Optional) |
| Seals | Nitrile |
| Diaphragm | Terene impregnated Buna N |
| Plunger & Seat | SS 304 / SS 316 |
| Handle | Bakelite Knob / Tee Handle |
| Type | Relieving / Non - Revlieving |
| Inlet Pressure | 0-10 Kg/cm2 |
| Outlet Pressure | Ranges between (0-2.1 kg/cm2, 0-4.2 kg/cm2, 0-7 kg/cm2, 0-10 kg/cm2) (30 PSI) (60 PSI) (100 PSI) (150 PSI) |
| Bracket | Wall Mounting |
| Bowl capacity | 120 ml |
| Drain | Manual |
| Net Weight |
1/4"- 0.948 Kg 1/2"- 1.158Kg |
